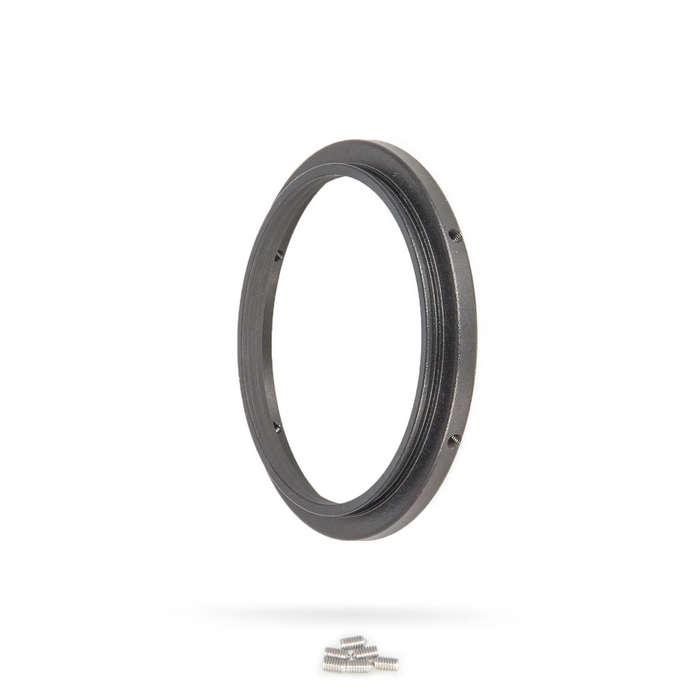

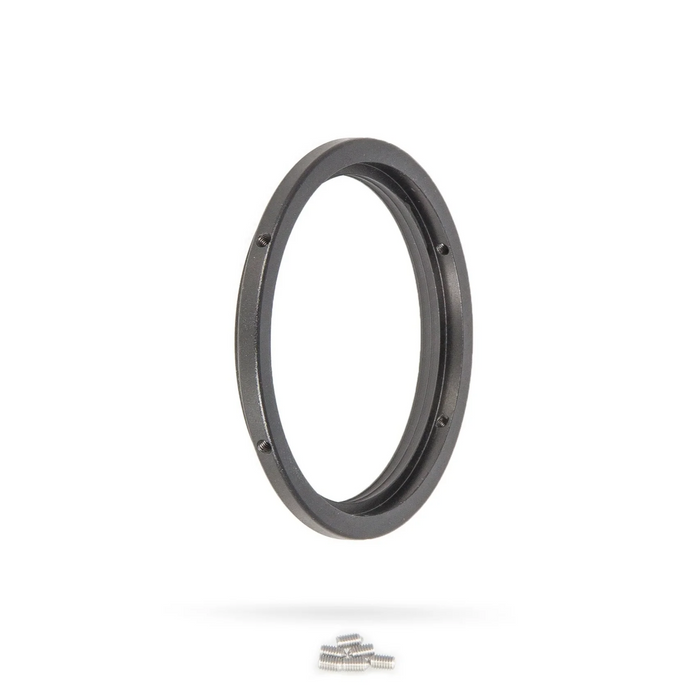

Baader UFC S70 Extension 5mm (UFC-XT5)

Baader UFC S70 Extension 5mm

• Baader UFC S70/5 Extension 5mm
• Telescope-side: with S70 dovetail clamp (screws included)
• Camera-side: with S70 dovetail
• Can be adapted via the S70 dovetail to the UFC filter base #2459110 and allows adaption of telescope-sided adapters with the S70 dovetail clamp

Important note on Hyperstar-Adaptation

The distances for adapting a camera to the Hyperstar system must be done with a precision of +/-0.3mm or better, otherwise the image quality will suffer. Please take a look at the following image showing the necessary Backfocus.

Example: A Celestron C11 Hyperstar has a backfocus requirement of 59.7mm; in addition, the focus shifts 0.66 in the extrafocal direction, if you use filters with a thickness of 2mm (as they are usually used for 2"/M48-housings).

As a rule of thumb, a filter moves the focus in the extrafocal direction for 1/3 of the filters thickness. Substract the flange focal distance of the camera from this value (rounded 60.7mm). The remaining distance is adjusted by the UFC and its adapters.

Technical Specifications

In the Box

• Baader UFC S70 Extension 5mm

Warranty & Manuals

2-Year Warranty
