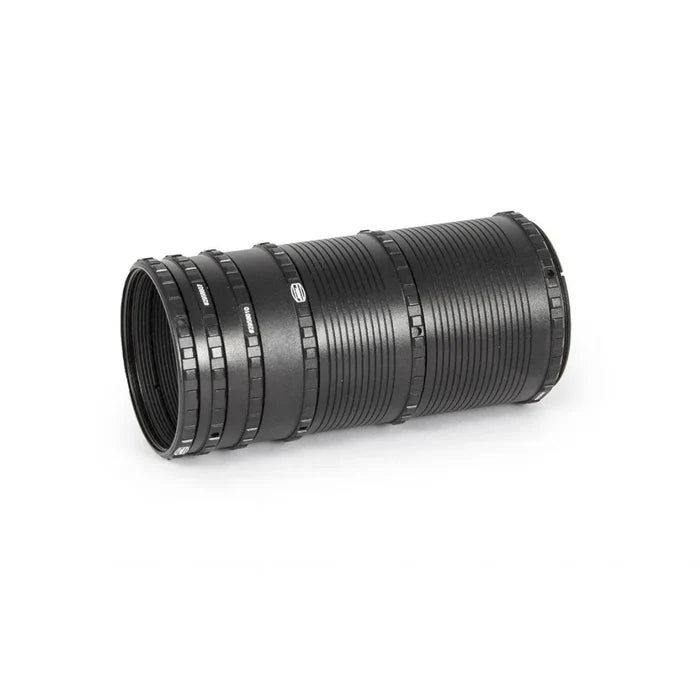

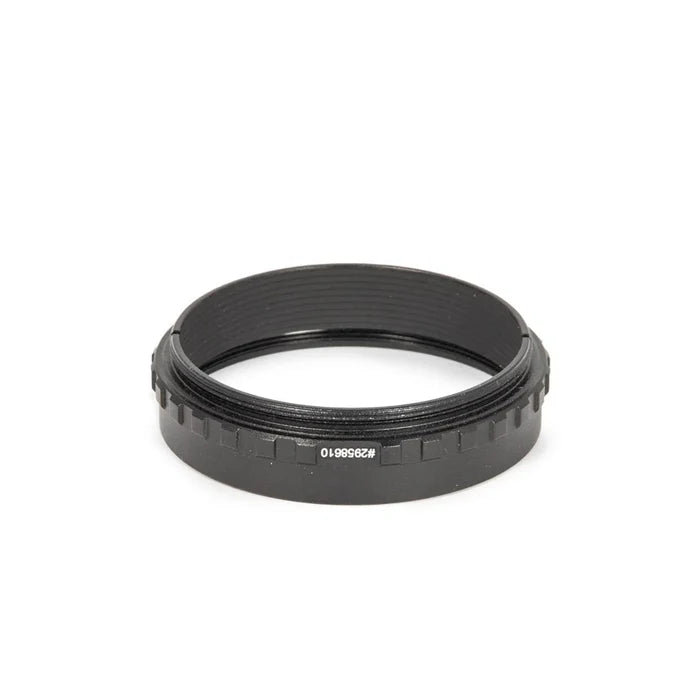

Used to adjust the working distance of larger cameras and similar accessories with M48 thread
Telescope side M48 internal thread, 3,5 mm depth
Eypepiece-/camera side M48 external thread, 3 mm depth
different optical path length available, high-quality Aluminum
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2, M48 and M48 parts are delivered with the new 3 mm standard.
M48, 30mm Extension :
Also used as M48 / 2" nose piece with 26 mm insertion depth, safety kerfs and 4 mm optical height.
M48, 40mm Extension :
Also used as M48 / 2" nose piece with 36mm insertion depth, safety kerfs and 4 mm optical height.
Technical Specifications
Available length :
5mm
7.5mm
10mm
15mm
30mm
40mm
Material: Aluminum
Male side: M48x0.75mm
Female side: M48x0.75mm
30mm and 40mm Extension : also features safety kerfs.
